GM-1612-UB8 GPS Receiver Module

Brief description

The Skynav GM-1612-UB8 is a complete GPS engine module that features super sensitivity, ultra low power and small form factor.

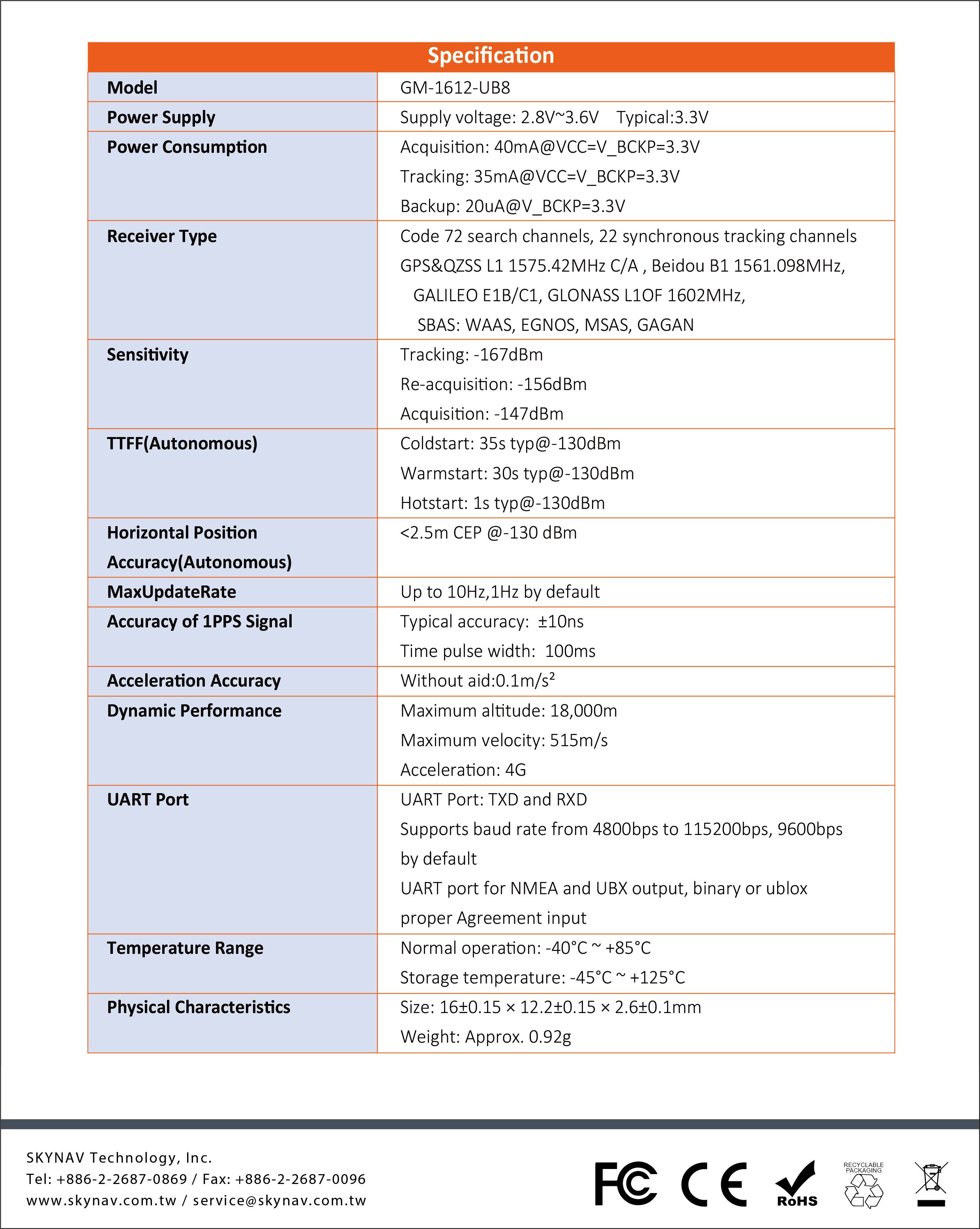

Features

Build on high performance, low-power ublox UBX-M8030-KT chip set
Ultra high Track sensitivity: -167dBm
Built in high gain LNA
Perfect compatibility ublox NEO-M8Q
Extremely fast TTFF at low signal level
Low power consumption: Max 40mA@3.3V
NMEA-0183 compliant protocol or custom protocol
Operating voltage: 2.8V to 3.6V
Operating temperature range:-40to85℃
SMD type with stamp holes
Small form factor: 16x12.2x2.6mm
RoHS compliant (Lead-free)

lNQUIRY

Product description

The Skynav GM-1612-UB8 is a complete GNSS engine module that features super sensitivity, ultra low power and small form factor. The GNSS signal is applied to the antenna input of module, and a complete serial data message with position, velocity and time information is presented at the serial interface with NMEA protocol or custom protocol.

Its –167dBm tracking sensitivity extends positioning coverage into place like urban canyons and dense foliage environment where the GNSS was not possible before. The small form factor and low power consumption make the module easy to integrate into portable device like PNDs, mobile phones, cameras and vehicle navigation systems.
