GM-100-M3 GPS Receiver

Brief description

The SKYNAV GM-100-M3 is a complete GPS engine receiver that features super sensitivity,ultra low power and small form factor.

Features

Build on high performance, low-power MediaTek AG3331 chipset
Ultra high Track sensitivity: -165dBm
Extremely fast TTFF at low signal level
Built in high gain LNA
The built-in super capacitor for backup ephemeris
Low power consumption: Max 30mA@3.3V
NMEA-0183 compliant protocol
Operating voltage: 3.0V to 5.0V
Operating temperature range:-40to85℃
Patch Antenna Size: 25x25x4mm
Small form factor: 49x39x13.4mm
Communication type: RS232
RoHS compliant (Lead-free)

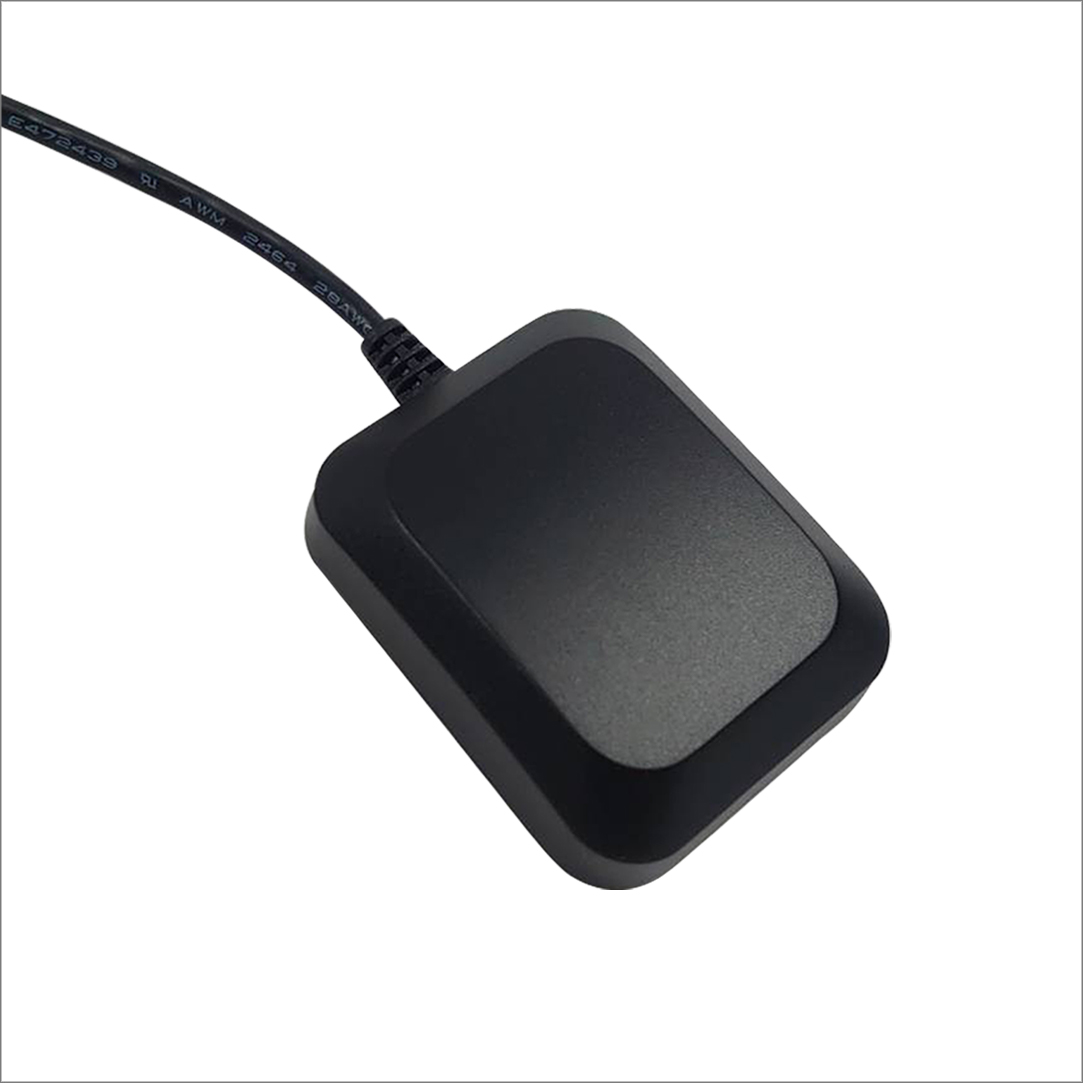

GM-100-M3_ GPS Receiver-vessel finder_小圖01

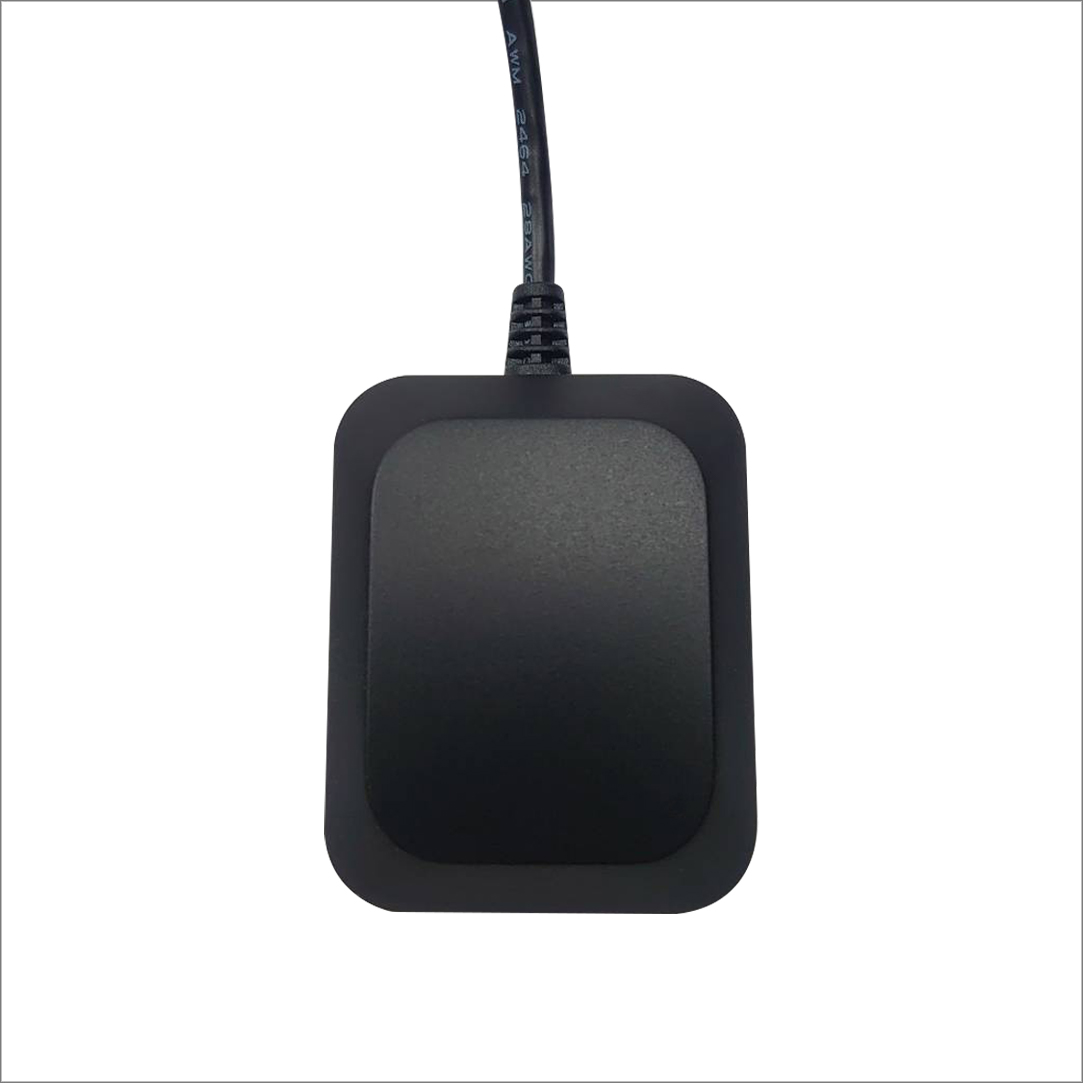

GM-100-M3_ GPS Receiver-vessel finder_小圖02

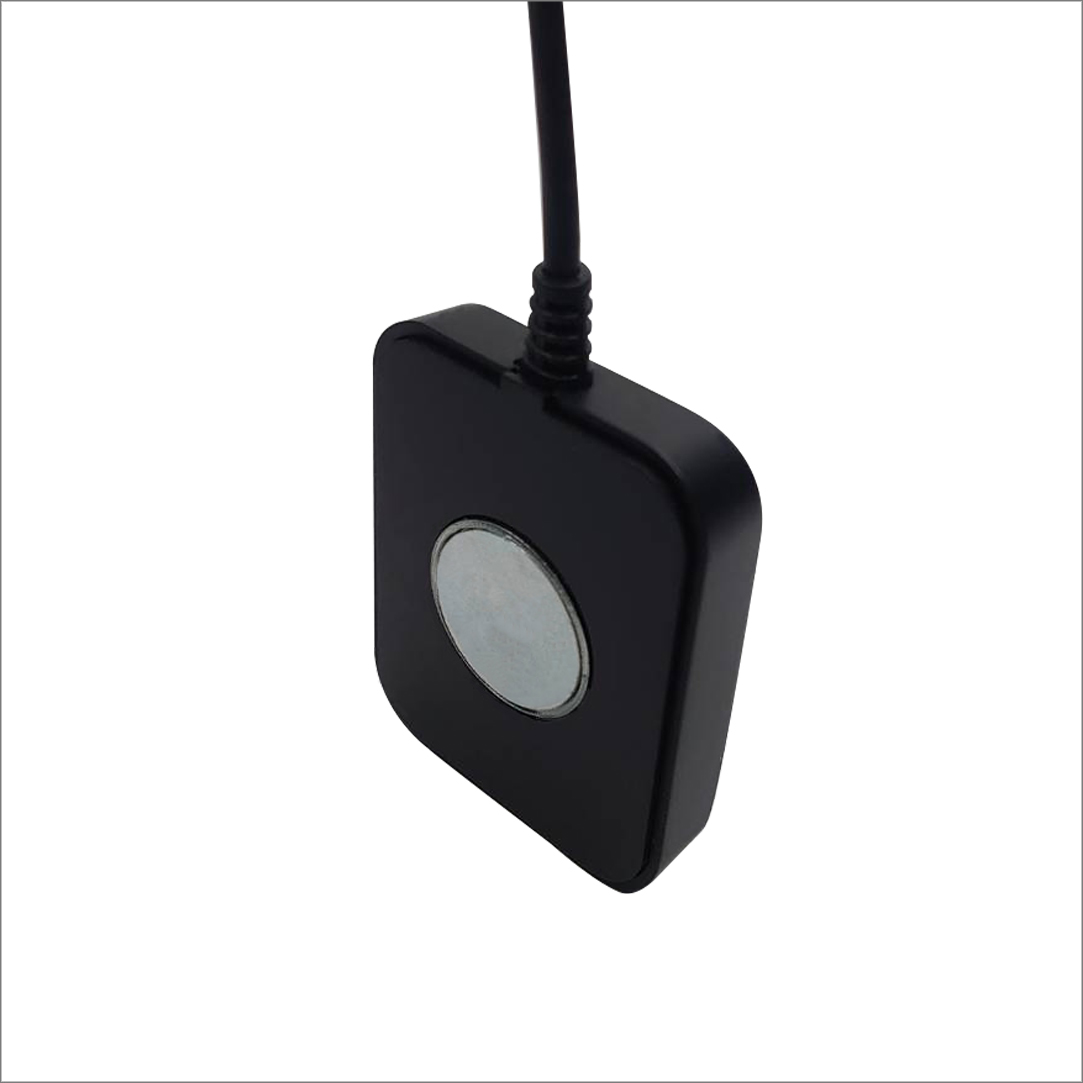

GM-100-M3_ GPS Receiver-vessel finder_小圖03

GM-100-M3_ GPS Receiver-vessel finder_小圖04

lNQUIRY

Product description

The SKYNAV GM-100-M3 is a complete GPS engine receiver that features super sensitivity, ultra low power and small form factor. The GPS signal is applied to the antenna input of receiver, and a complete serial data message with position, velocity and time information is presented at the serial interface with NMEA protocol or custom protocol.

Its –165dBm tracking sensitivity extends positioning coverage into place like urban canyons and dense foliage environment where the GPS was not possible before. The small form factor and low power consumption make the receiver easy to integrate into vehicle navigation systems.
