GM-100-U8 GNSS Receiver

Brief description

The GM-100-U8 is a GNSS receivers featuring the high performance u-blox M8 positioning engine.

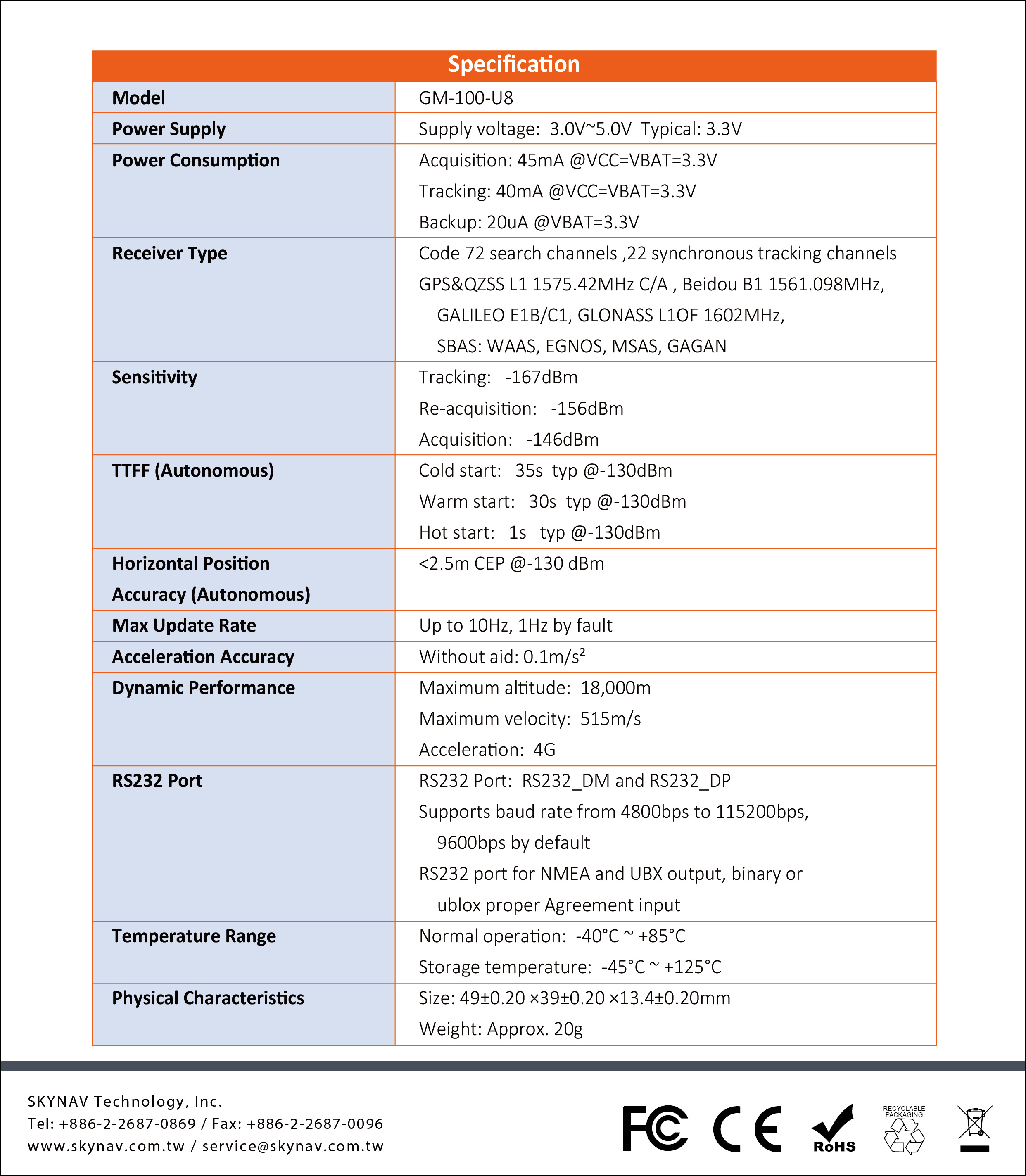

Features

Build on high performance, low-power u-blox UBX-M8030-KT chip set
Ultra high sensitivity: -167dBm
Extremely fast TTFF at low signal level
Built in high gain LNA
Low power consumption: Max 45mA@3.3V
NMEA-0183 compliant protocol or custom protocol
Operating voltage: 3.0V--5.0V
Operating temperature range: -40 to 85℃
Patch Antenna Size: 25x25x4mm
Small form factor: 49x39x13.4mm
Communication type: RS232
RoHS compliant (Lead-free)

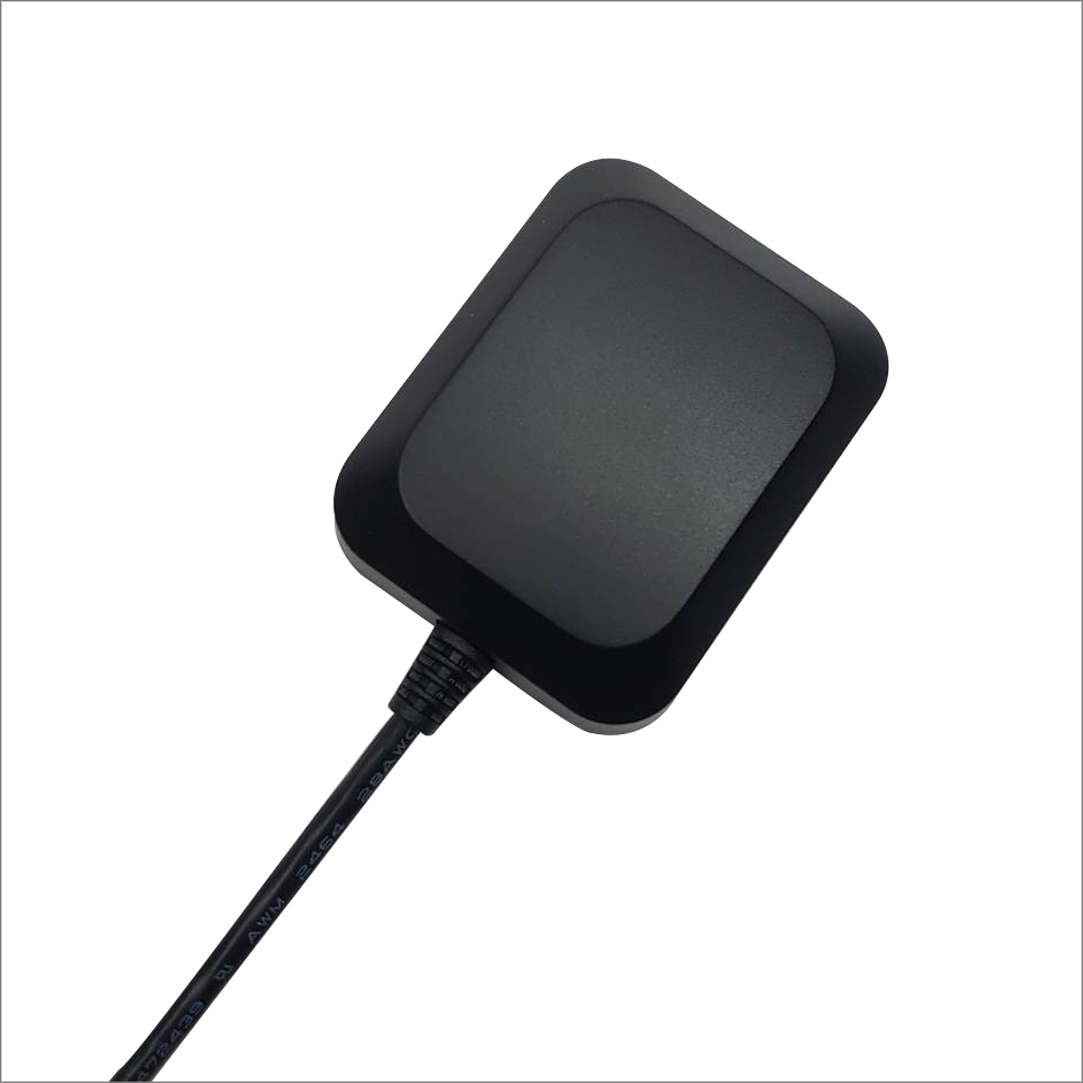

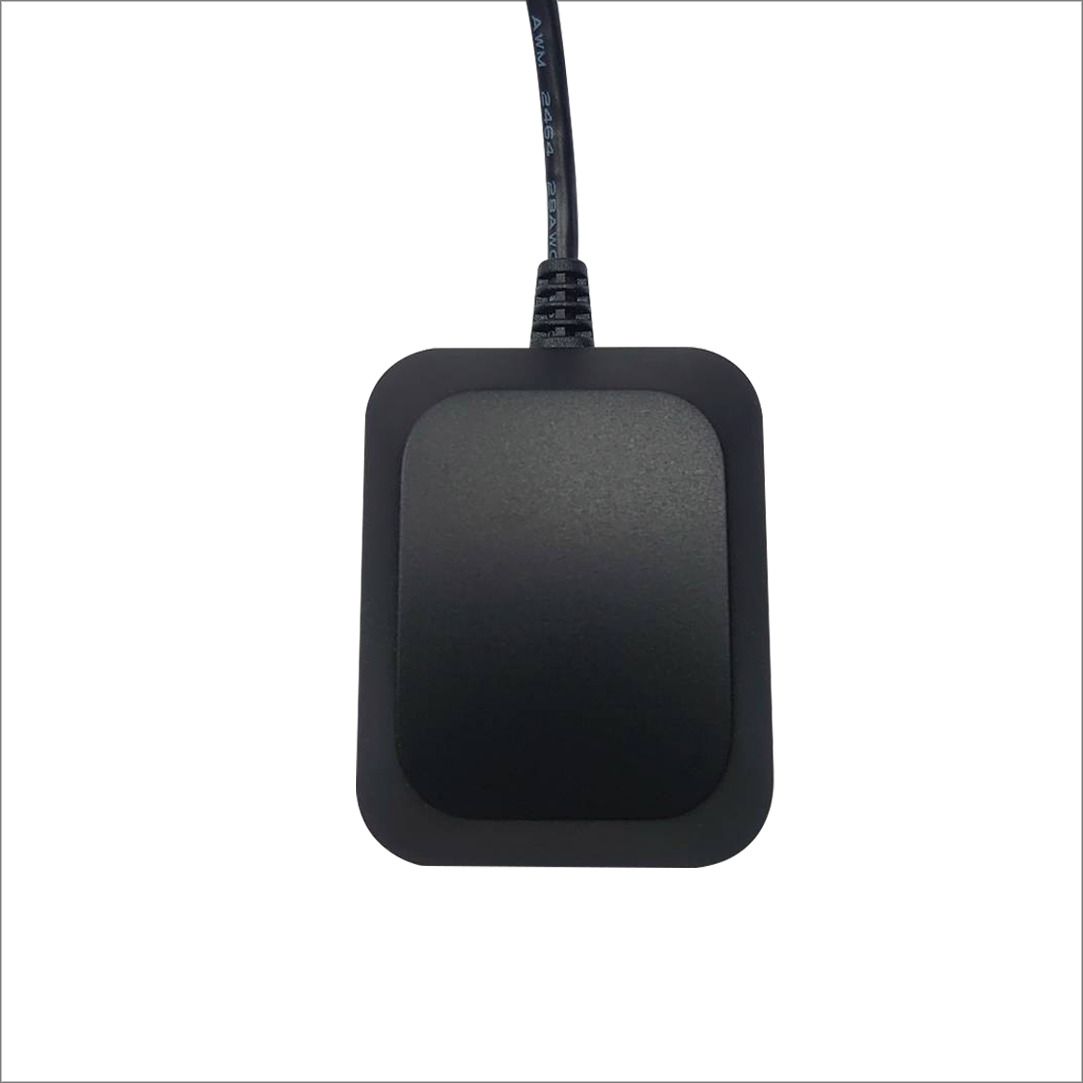

GM-100-U8_ GPS Receiver-vessel finder_小圖01

GM-100-U8_ GPS Receiver-vessel finder_小圖02

GM-100-U8_ GPS Receiver-vessel finder_小圖03

GM-100-U8_ GPS Receiver-vessel finder_小圖04

lNQUIRY

Product description

The GM-100-U8 is a GNSS receivers featuring the high performance u-blox M8 positioning engine. These flexible and cost effective receivers offer numerous connectivity options in a miniature package.

The 72-channel u-blox M8 positioning engine boasts a Time-To-First-Fix (TTFF) of under 1 second. The dedicated acquisition engine, with over 1 million correlators is capable of massive parallel time/frequency space searches, enabling it to find satellites instantly. Innovative design and technology suppresses jamming sources and mitigates multipath effects, giving GM-100-U8 GNSS receivers excellent navigation performance even in the most challenging environments.
