GNSS Satellites Signal Repeater

GR-800  GNSS Satellites Signal Repeater

Brief description

GR-800 GPS/GLONASS/BEIDOU/GALILEO and QZSS system re-radiating for indoor satellites signal reception. The GPS/GNSS repeater system provides seamless coverage inside large buildings and underground facilities.

Features

  • Rea-time GPS/GLONASS/BEIDOU/GALILEO satelites outdoor reception to an indoor environment.
  • Cable length extended as long as 50m RF cable.
  • Up to Re-radiating 30m radius in line-of-sight.
  • Customizable Cables and Connectors.

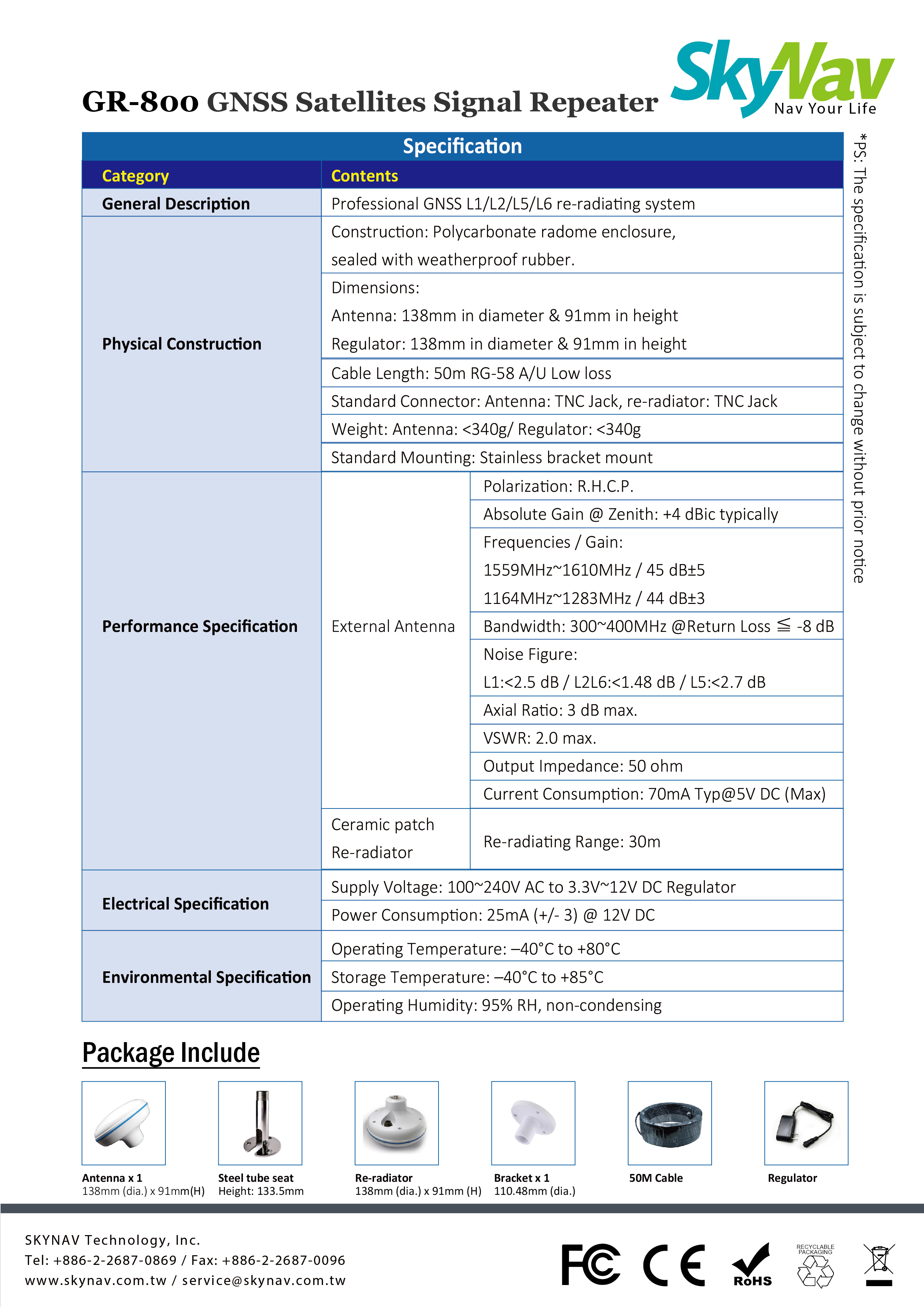

Product description

GR-800 is a complete GPS/GLONASS/BEIDOU/GALILEO/QZSS L1/L2/L5/L6 band signal re-radiating system with dual antennas to re-transmit real-time GPS/GNSS satellite outdoor reception to an indoor environment.

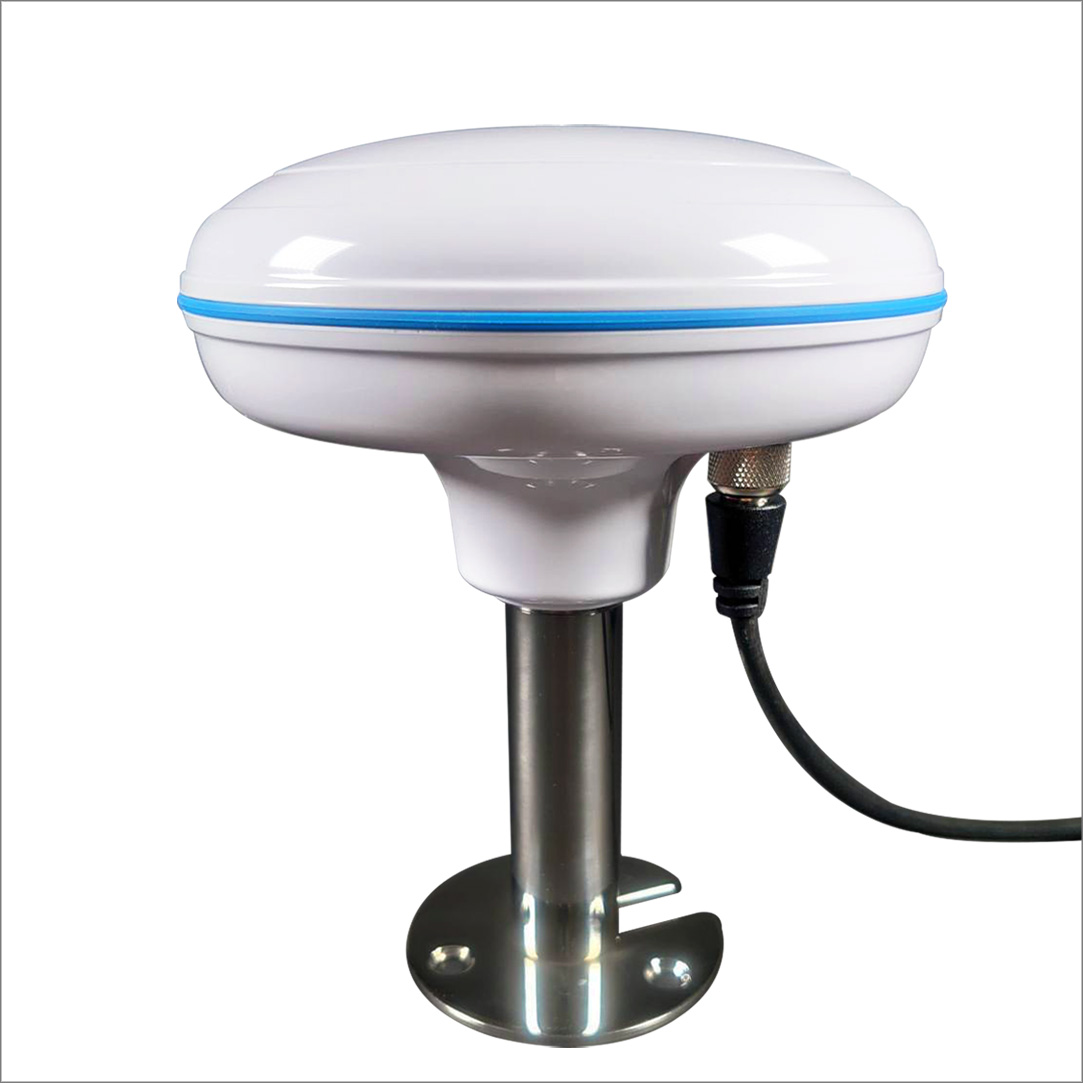

The Repeater solution includes a high gain external outdoor GPS/GNSS antenna (RA-800), a precisely calibrated amplifier circuit with re-radiator (GR-800), and a built-in power supply regulator. The whole system is designed as PNP (Plug-and-Play) hardware and it can be installed permanently to a secured location by using screws.

Wherever in lab/ large buildings /underground facilities, GR-800 guarantees to bring and re-radiate GPS/GNSS signal that meets your requirement.

GNSS L1/L2/L5/L6 Signal Re-radiating for Indoor Satellites Signal Reception
