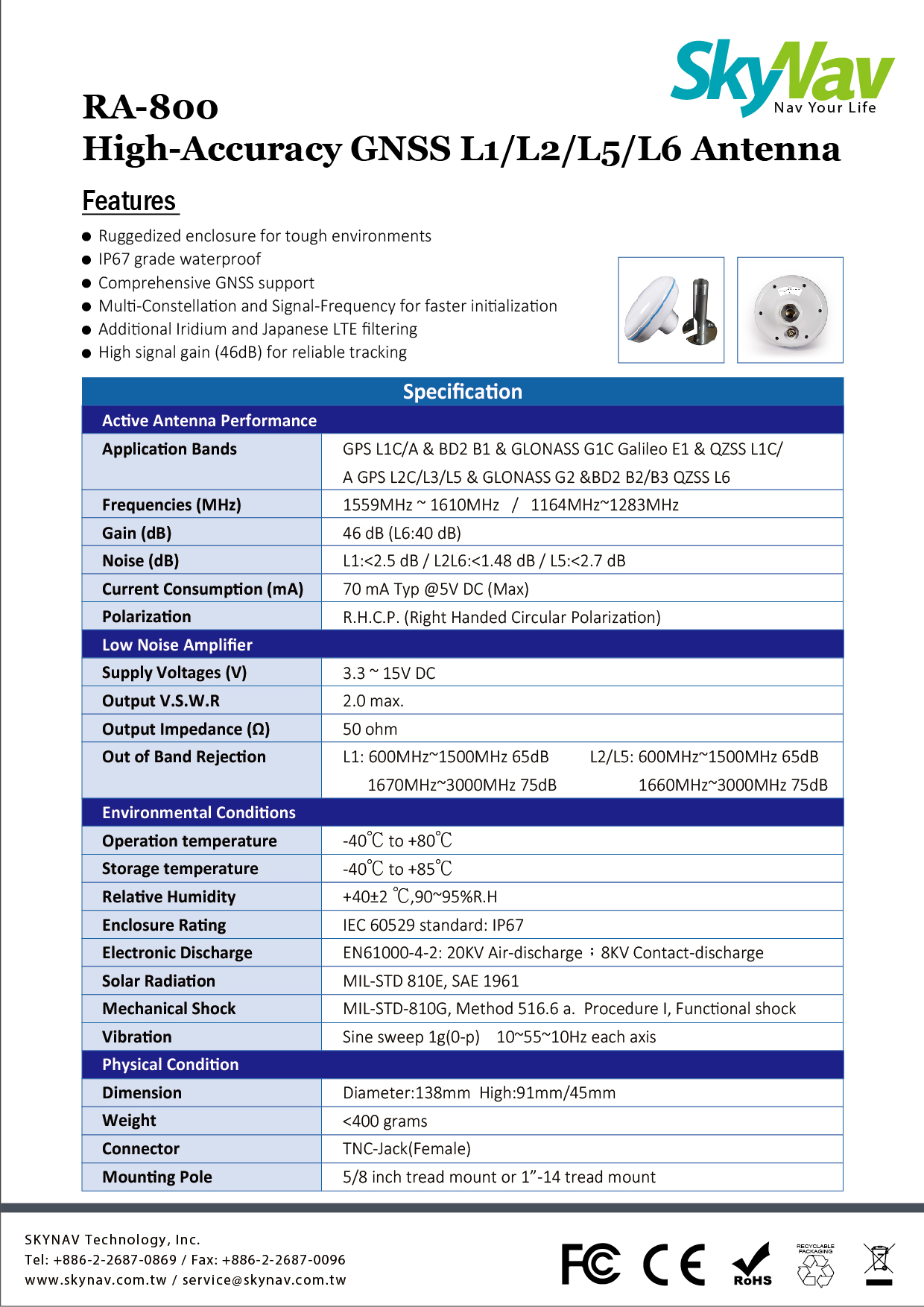

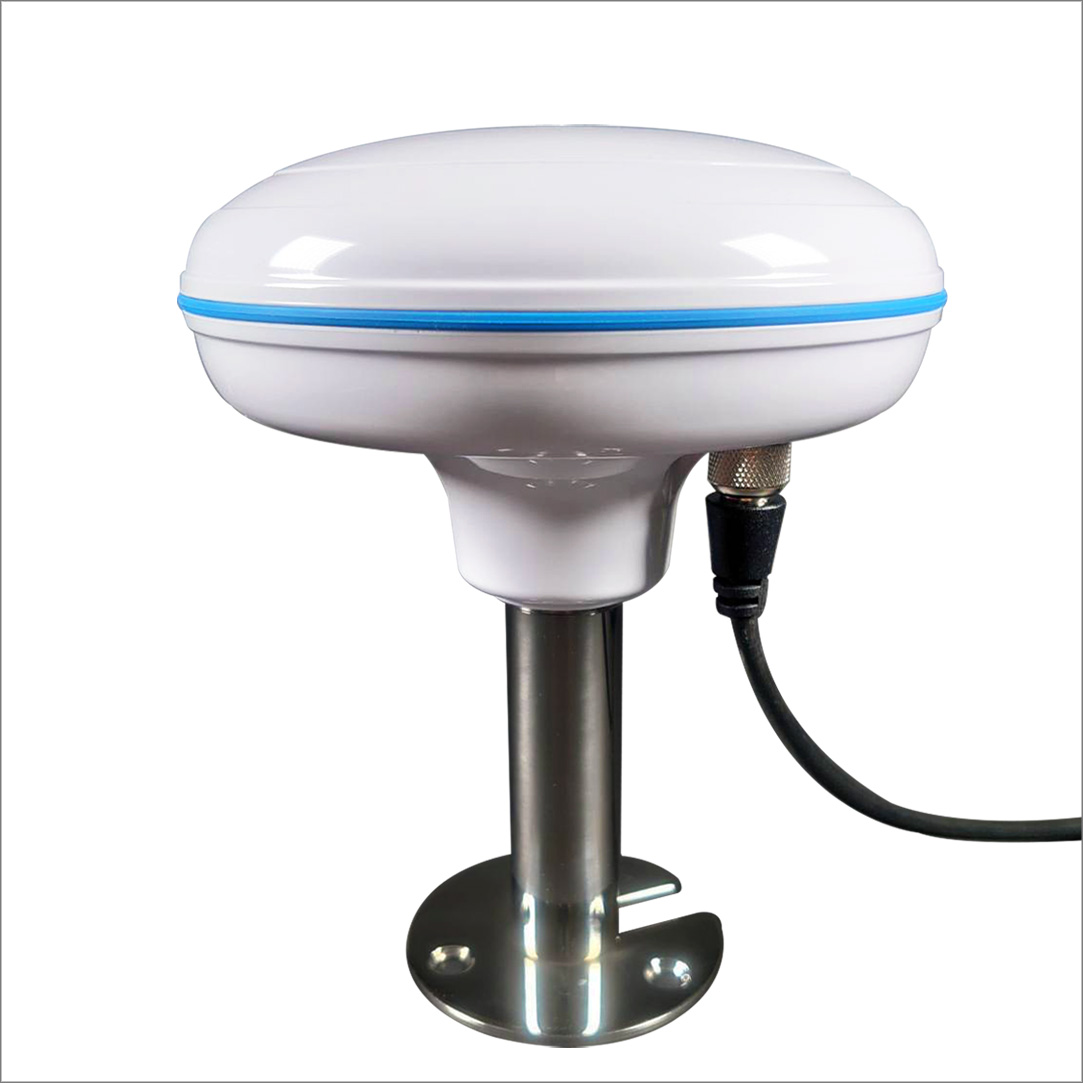

High-Accuracy GNSS Antenna / RA-800

RA-800 High-Accuracy GNSS L1/L2/L5/L6 Antenna

Brief description

RA-800 antenna is designed to support GPS/GLONASS/BEIDOU/GALILEO and QZSS system, with centimeter-level accuracy level.It supports ultra precise applications such as automatic driving, high-rise building urban areas with poor signals, high precision requirements from agriculture and construction applications, and rugged land and marine applications.


  • IP67 grade waterproof
  • Comprehensive GNSS support
  • Multi-Constellation and Signal-Frequency for faster initialization
  • Additional Iridium and Japanese LTE filtering
  • High signal gain (46dB) for reliable tracking

Product description

RA-800 integrates high performance GNSS ceramic patch antenna and unique filtering features with innovative proprietary circuit design and advanced double filters, which reduce interference from out-of-band signals. The design of the ceramic antenna element also helps to reduce the multipath effect.

With especially-designed rugged/IP67 water ingress enclosure, the GNSS antenna is suitable for installing in harsh environment. The high-performance active antenna is compatible with most GPS/GNSS receivers with 3~15V DC input power. RA-800 receives all existing public GNSS signals, including GPS, GLONASS, Galileo and BeiDou as well as GPS L2C/L5, QZSS L6, GLONASS G2 and BD2 B2/B3, which provides better positioning accuracy for RTK applications when used on the base and/or the rover, the RA-800 can achieve genuine centimeter-level accuracy. Cable and connectors are customizable.
