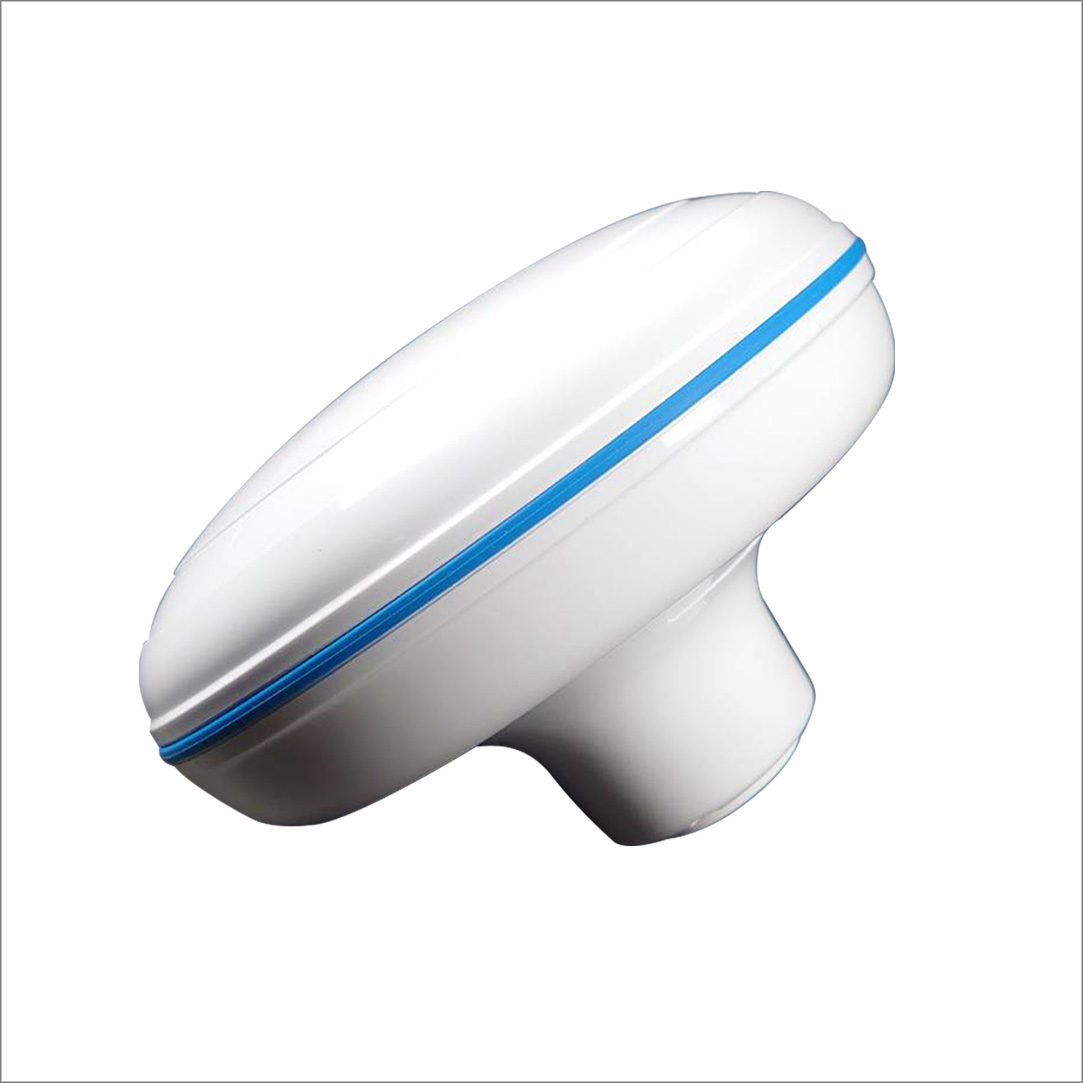

GPS Time Transfer Receiver / GM-800T

GM-800T GPS Time Transfer Receiver

Brief description

GM-800T is designed for the utilized in a variety of applications that require a permanent mounting configuration or time synchronization.

Features

  • User configurable output sentences
  • Standard NMEA 0183 V4.0 Supported via RS-422
  • Support GPS/QZSS/SBAS Satellite Systems
  • SBAS Supported including WAAS/EGNOS/MSAS
  • Wide operating voltage range 8~45V DC
  • IP68 fully waterproof
  • Support Time Pulse 1PPS+5V and 1PPS-5V

Product description

GM-800T is designed for the utilized in a variety of applications that require a permanent mounting configuration or time synchronization. It is the integration of the high performance GNSS patch antenna and a low noise amplifier into an extremely fully waterproof enclosure and can receive all existing public GNSS signals, including GPS, Galileo, and SBAS as well as QZSS L1, and provide excellent antenna signal amplification. The GM-800T is designed with a flexible positioning engine that offers numerous connectivity options in a rugged package.

GM-800T series supports concurrent reception of up to four GNSS (GPS, GLONASS, Galileo, and BeiDou). The high number of visible satellites enables the receiver to select the best signals.
