Product description

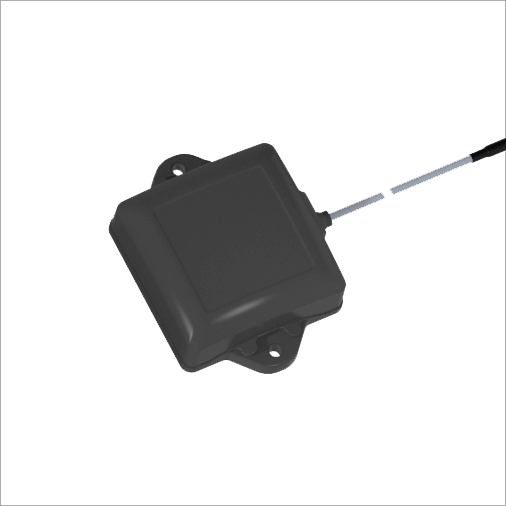

RA-66 integrates high performance GNSS ceramic patch antenna and unique filtering features with innovative proprietary circuit design and advanced filter, which reduce interference from out-of-band signals. The design of the ceramic antenna element also helps to reduce the multipath effect.

With especially-designed rugged/IP67 water ingress enclosure, the GNSS antenna is suitable for installing in harsh environment. The high-performance active antenna is compatible with most GPS/GNSS receivers with 3~5.5V DC input power. RA-66 receives all existing public GNSS signals, including GPS, GLONASS, Galileo and BeiDou as well as GPS L2C/L5, QZSS L6, GLONASS G2 and BD2 B2/B3, which provides better positioning accuracy for RTK applications when used on the base and/or the rover, the RA-66 can achieve genuine centimeter-level accuracy. Cable and connectors are customizable.
